AGD
10.1" AUO TFT-LCD P/N: G101EVN03.0 w/ high bright 1000 cd/m² (typ), full optical bonding, 3mm AG cover glass. External LED controller.
10.1" AUO TFT-LCD P/N: G101EVN03.0 w/ high bright 1000 cd/m² (typ), full optical bonding, 3mm AG cover glass. External LED controller.
Couldn't load pickup availability

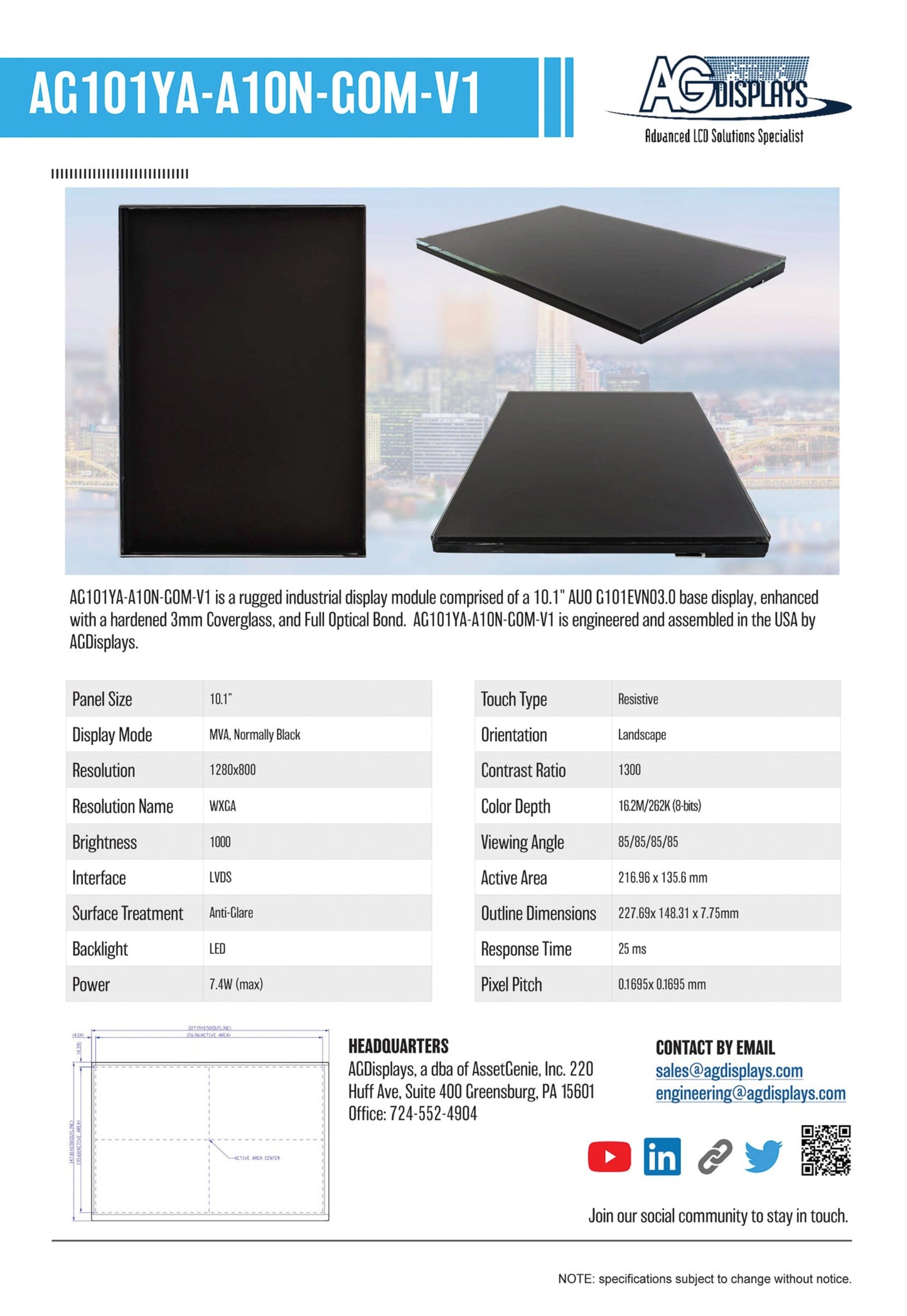

AGD P/N AG101YA-A10N-GOM-V1 / MFG P/N G101EVN03.0

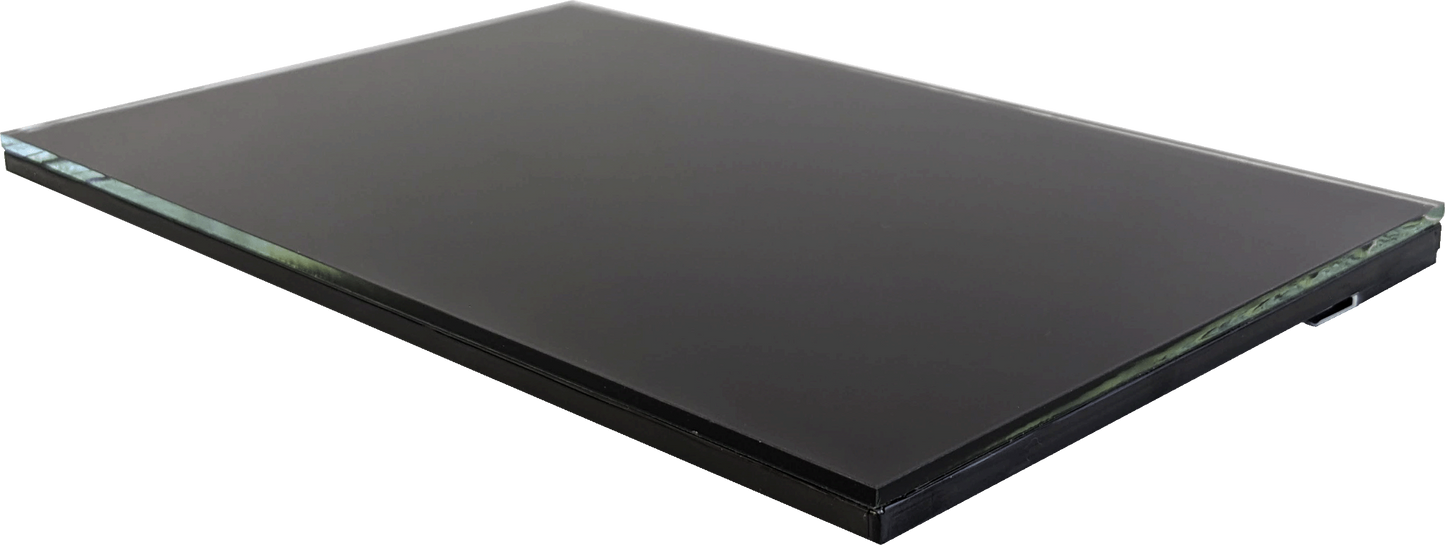

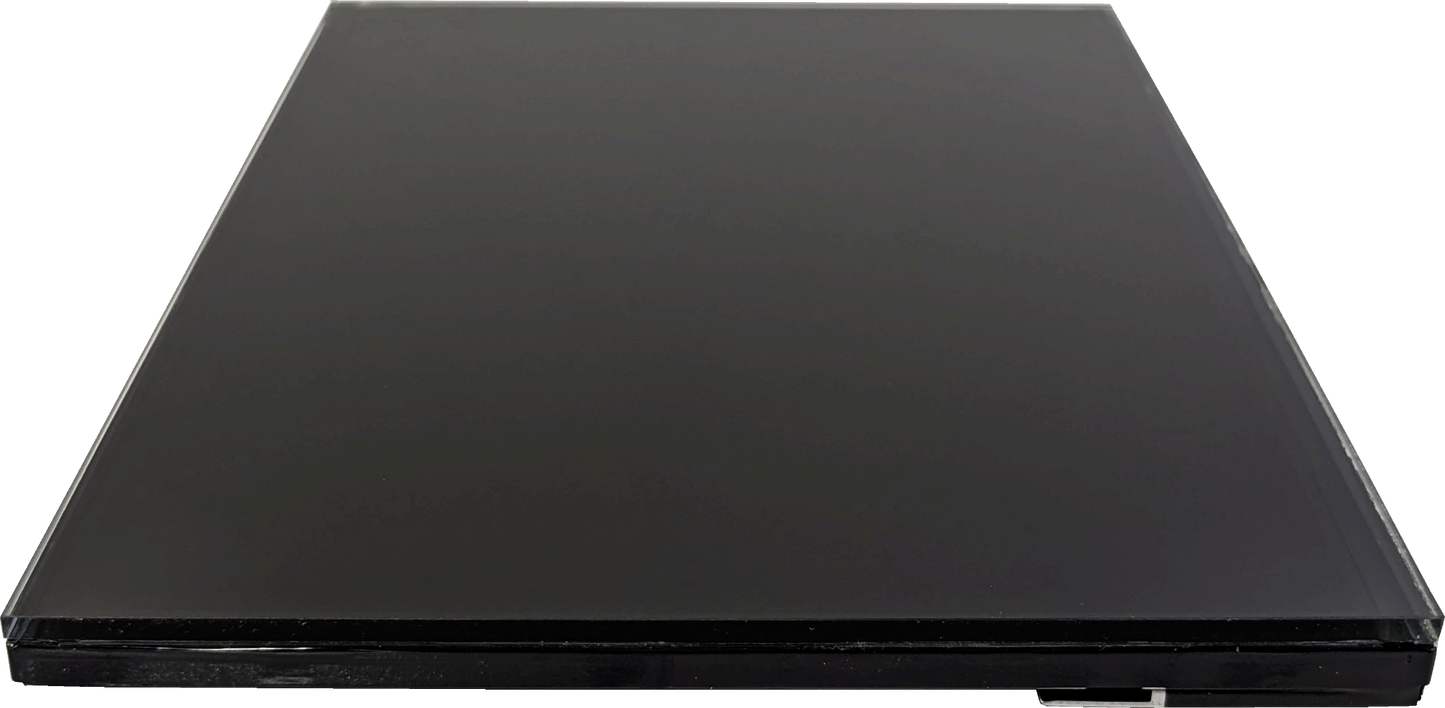

Description: 10.1" TFT-LCD with Hardened 3mm AG Coverglass and optical bonding
Size: 10.1"
Resolution: 1280 x 800
Luminance: 1000 cd/m² (typ) high bright enhancement
Contrast Ratio: 1300:1
Viewing Angles: 85/85/85/85 °
Operation Temp: -20 / 60 °C
Storage Temp: -30 / 70°C
Interface (I/O): LVDS
Additional Features: Full optical bond integration using an index matched adhesive to integrate a 3mm AG surface Coverglass.
External LED controller included.
Engineering kit available and includes: LCD controller, Data and backlight cabling, menu and OSD button board, button board cabling, & 12v power adaptor.
Pricing and Lead time required for kits. Better pricing available for box LCD quantity. Please contact us directly at sales@agdisplays.com with part number.
