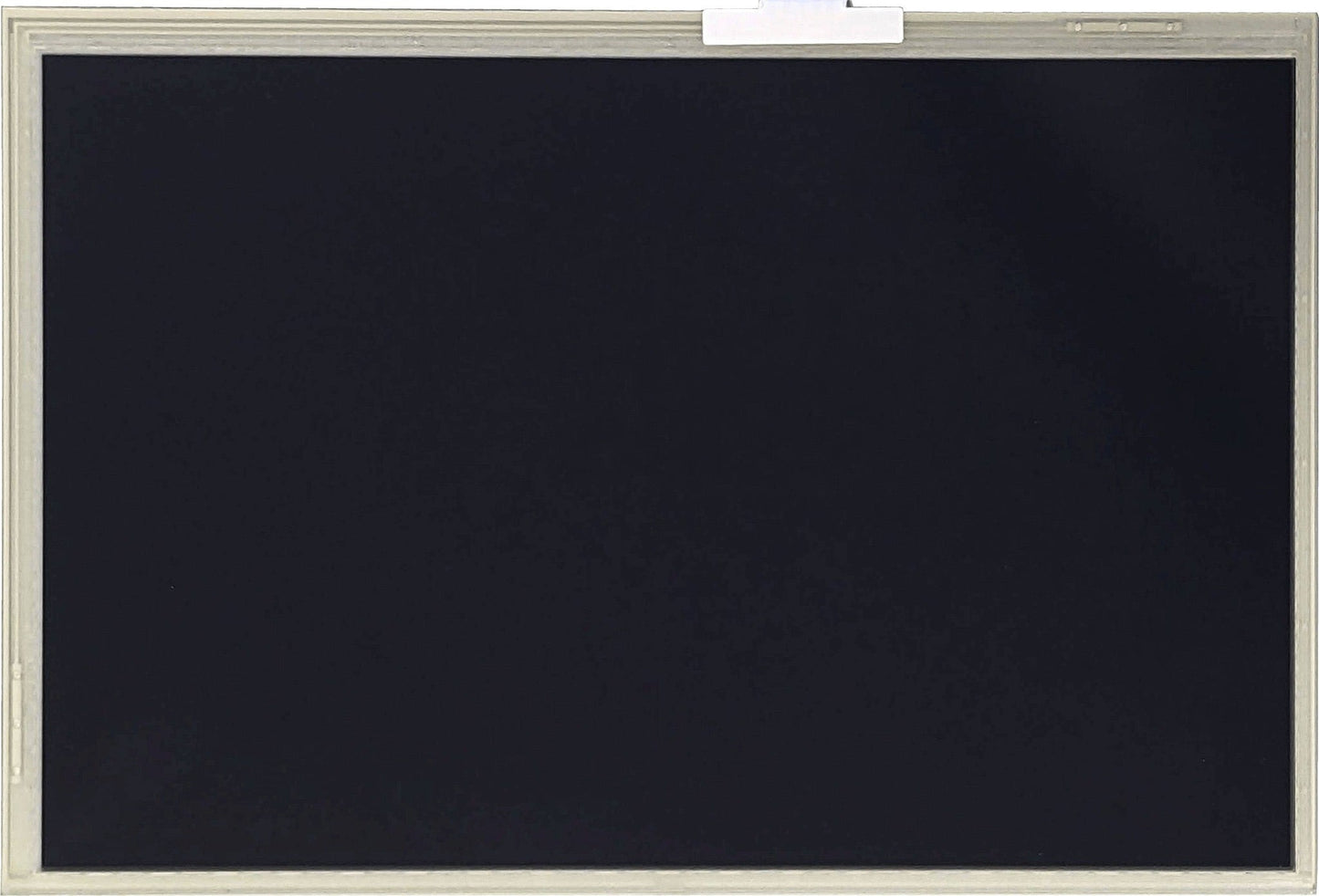

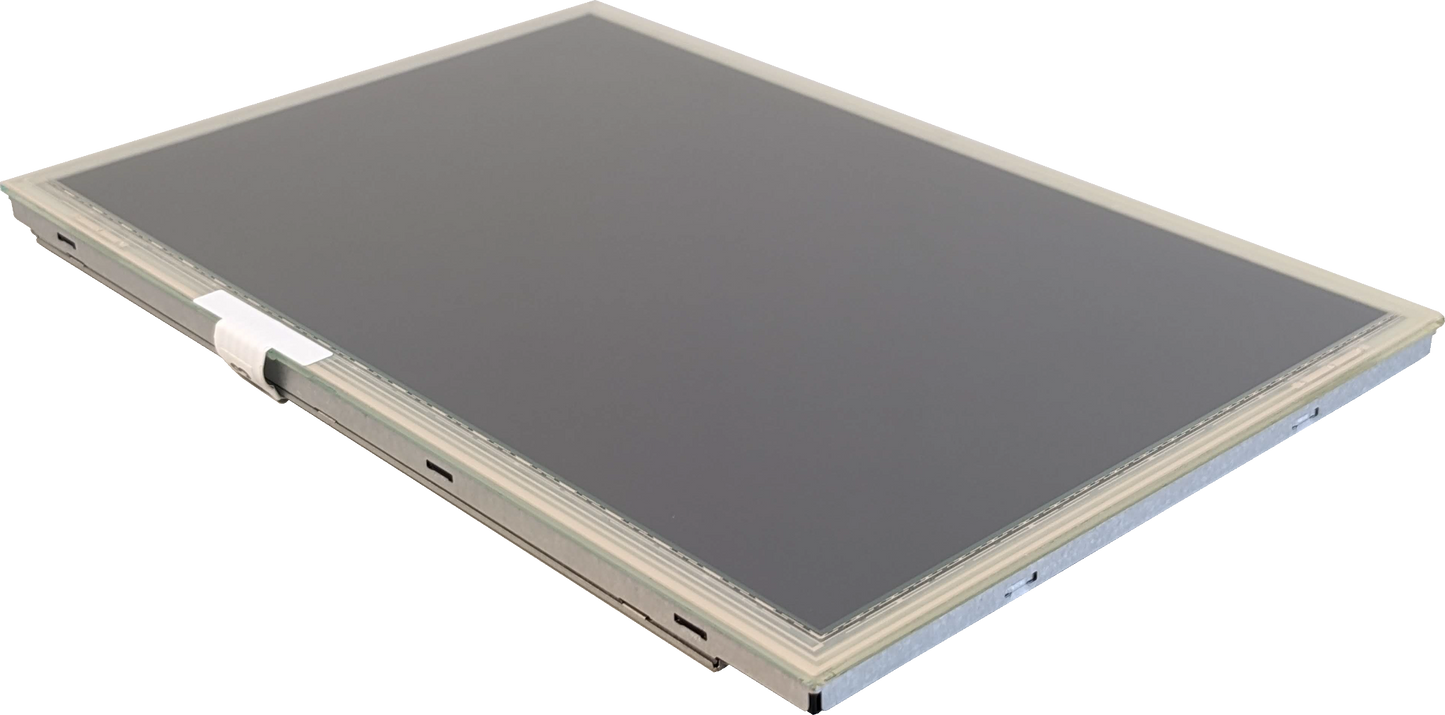

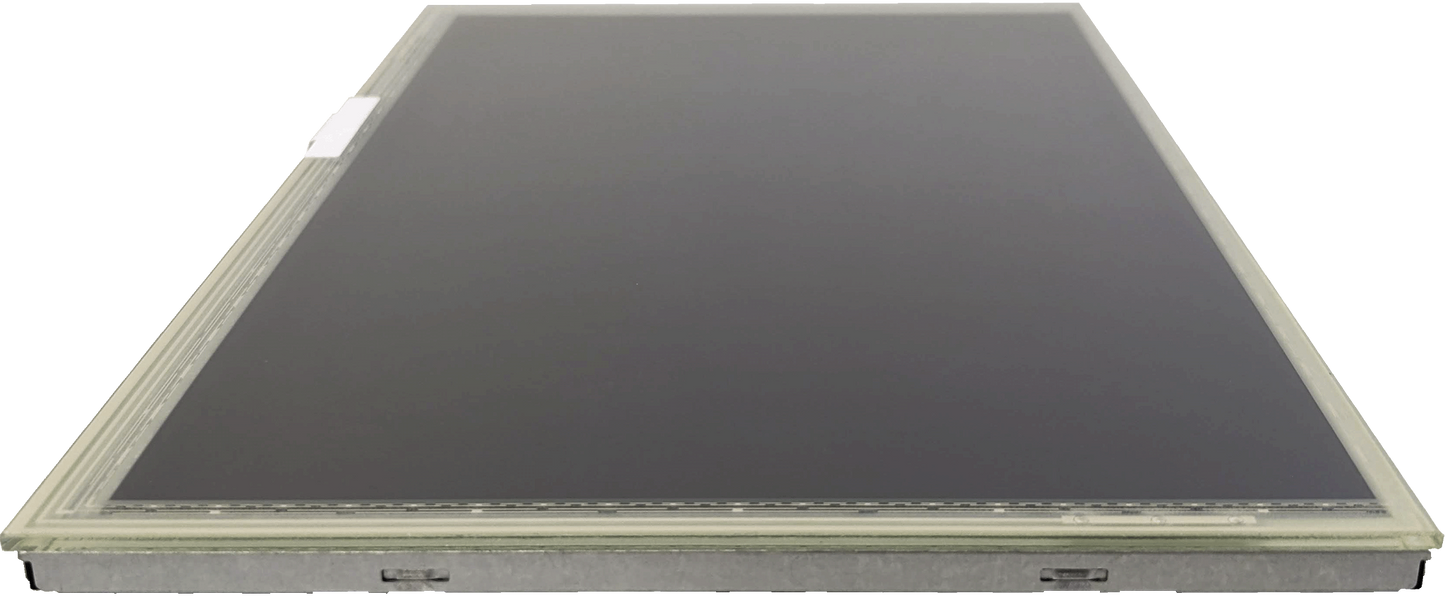

10.1" AUO TFT-LCD P/N: G101EVN01.2 w/ 5-wire resistive touch screen with resistive touch screen controller, perimeter tape bond integration.

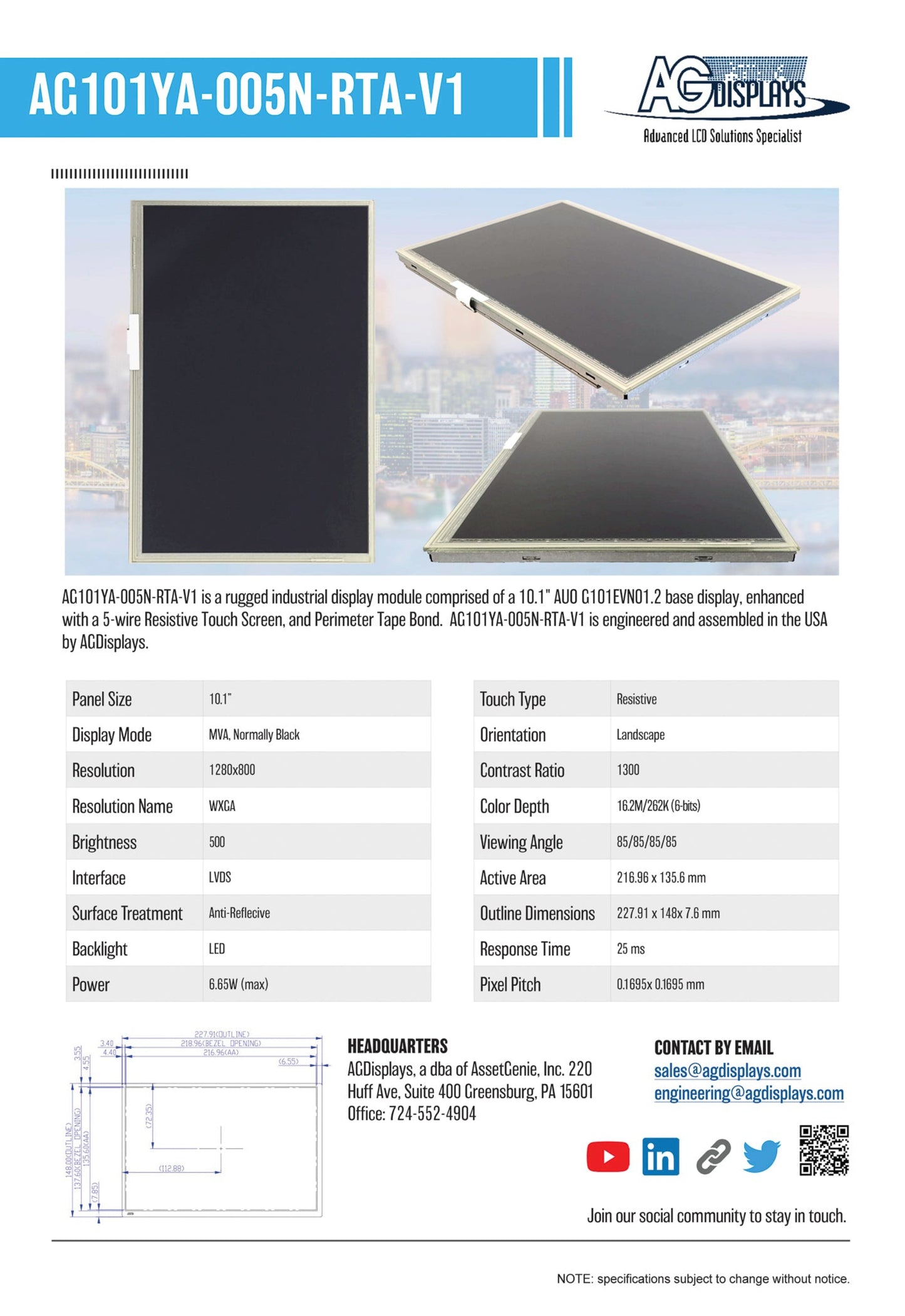

AGD P/N: AG101YA-005N-RTA-V1   MFG P/N: G101EVN01.2

Description: 10.1" TFT-LCD with 5-wire Resistive Touch Screen and perimeter tape bond.
Size: 10.1"
Resolution: 1280 x 800
Luminance: 500 cd/m² (typ)
Contrast Ratio: 1300:1
Viewing Angles: 85/85/85/85°
Operation Temp: -20 to 60 °C
Storage Temp: -30 to 80 °C
Interface (I/O): LVDS
Additional Features: Continuous adhesive for touchscreen integration.
5-wire resistive touch screen controller included.
No external LED controller needed.

Engineering kit available and includes: LCD controller, Data and backlight cabling, menu and OSD button board, button board cabling, & 12v power adaptor.

Pricing and Lead time required for kits. Better pricing available for box LCD quantity. Please contact us directly at sales@agdisplays.com with part number.
